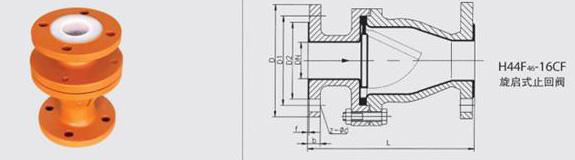

DN(mm) | NPS(inch) | L | D | D1 | D2 | b | Z-Φd | H1 | W(kg) |
15 | 1/2 | 130 | 95 | 65 | 46 | 14 | 4-Φ14 | 72 | 6 |
20 | 3/4 | 150 | 105 | 75 | 56 | 16 | 4-Φ14 | 75 | 7.8 |
25 | 1 | 160 | 115 | 85 | 65 | 16 | 4-Φ14 | 80 | 10 |
32 | 1 1/4 | 180 | 140 | 100 | 76 | 18 | 4-Φ18 | 85 | 12.5 |
40 | 1 1/2 | 200 | 150 | 110 | 84 | 18 | 4-Φ18 | 95 | 14.5 |
50 | 2 | 230 | 165 | 125 | 99 | 20 | 4-Φ18 | 115 | 19.5 |
65 | 2 1/2 | 290 | 185 | 145 | 118 | 20 | 4-Φ18 | 140 | 25.5 |
80 | 3 | 310 | 200 | 160 | 132 | 20 | 8-Φ18 | 170 | 30 |
100 | 4 | 350 | 220 | 180 | 156 | 22 | 8-Φ18 | 200 | 36 |
125 | 5 | 400 | 250 | 210 | 184 | 22 | 8-Φ18 | 230 | 62 |
150 | 6 | 480 | 285 | 240 | 211 | 24 | 8-Φ22 | 255 | 78 |
200 | 8 | 600 | 340 | 295 | 266 | 24 | 12-Φ22 | 285 | 156 |
250 | 10 | 730 | 405 | 355 | 319 | 26 | 12-Φ26 | 310 | 172 |
300 | 12 | 850 | 460 | 410 | 370 | 28 | 12-Φ26 | 345 | 208 |
